PA-120A 80DB 120W Power Amplification Circuit Power Amplifier 80HZ-20KHZ

Place of Origin : Guangdong, China

Model Number : PA-120A

MOQ : 100

warranty : 3years

dimension : 485*400*88

snr : >/=80DB

output power : 120w

Shape : Rectangle

Frequency response : 80HZ-20KHZ+/-1DB

Contact Now

PA-120A 80DB 120W Power Amplification Circuit Power Amplifier 80HZ-20KHZ

Product Description

PA - 120A is an audio power amplifier with advanced power - amplification circuit. It runs on AC220V/50Hz, has a 120W rated power, supports 4 - 16Ω low - impedance and 70V/100V outputs, with volume control and multiple protective indicators.

Features

1. Using advanced and efficient power amplification circuit. circuit, with 1 balanced input, 1 unbalanced input, and 1
unbalanced output.

2.4-16Ω low impedance output and 70V/100V output are available.

3. With volume control.

4. Indicators for signal , peak value, overloading, over heating and short circuit.

Model

PA-060A

PA-120A

PA-240A

PA-360A

PA-500A

PA-650A

PA-800A

PA-1000A

PA-1500A

Iput Voltage

AC220V/50HZ

Rated Power

Iput Voltage

Sensitivity

Frequency Response

Dimension

Material

Rated Power

60W

120W

240W

360W

500W

650W

800W

1000W

1500W

AUX Sensitivity

0DB

120W

90DB

50-21KHz

186*189*306

ABS

Protection Circut

DC, Overload, AC fuse, Short-circuit

240W

92DB

50-22KHz

222*214*335

ABS

Frequency Response

80HZ-20KHZ+/-1DB

360W

THD

THD</=0.1%

560W

SNR

>/=80DB

650W

Line Output

0DB

1000W

Operating Temperature

-5℃-80℃

Operating Humidity

20℃-80℃ relative humidity

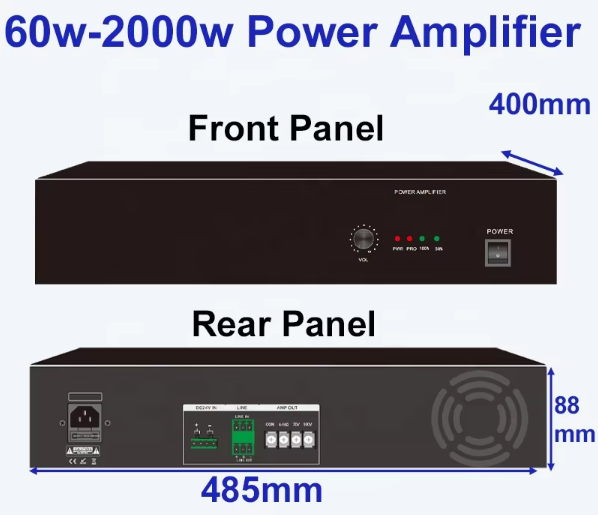

Dimensions

485*400*88
