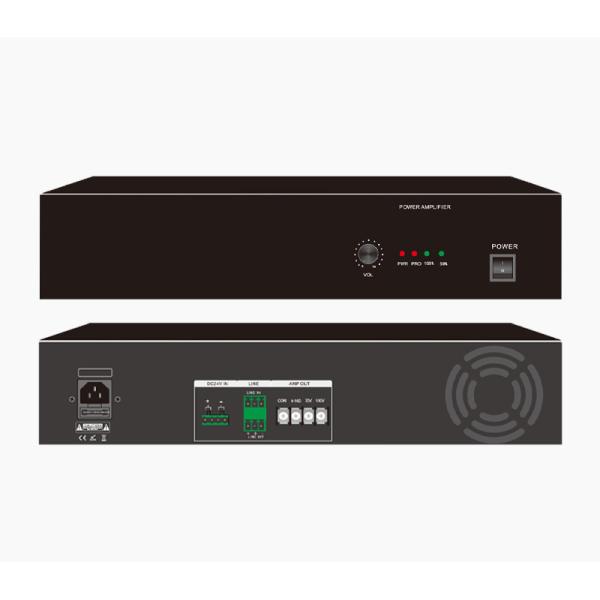

PA-2000A Broadcast Power Amplifier 2000W with Volume Control OEM ODM

Model Number : PA-2000A

Place of Origin : Guangdong, China

MOQ : 100

warranty : 3years

dimension : 485*400*88

snr : >/=80DB

output power : 2000W

Operating Voltage : 70V/100V

Shape : Rectangle

Frequency response : 80HZ-20KHZ+/-1DB

Contact Now

High-Power 2000W OEM ODM Amplifier Economical Broadcast Power Amplifier

Product Overview

This professional-grade power amplifier delivers exceptional performance for home theater and broadcast applications, featuring advanced circuitry and robust protection systems.

Key Features

Advanced Circuit Design: Efficient power amplification circuit with 1 balanced input, 1 unbalanced input, and 1 unbalanced output for flexible connectivity
Precise Volume Control: Adjustable output with models ranging from 60W to 1500W (PA-060A to PA-1500A)
Multiple Output Options: Select models offer 70V/100V constant voltage output with 4-16Ω constant impedance
Comprehensive Protection: DC, overload, overheating, and short-circuit protection circuits
Visual Monitoring: Indicators for signal, peak value, overloading, overheating, and short-circuit conditions

Technical Specifications

Frequency Response: 80Hz - 20KHz (±1dB)
Total Harmonic Distortion: ≤0.1%
Signal-to-Noise Ratio: ≥80dB
Line Output: 0dB
Operating Temperature: -5°C to 80°C
Operating Humidity: 20% - 80% relative humidity
Dimensions: 485×402×88mm
Input Voltage: AC220V/50Hz

Model Specifications

Model	PA-060A	PA-120A	PA-240A	PA-360A	PA-500A	PA-650A	PA-800A	PA-1000A	PA-1500A	PA-2000A
Rated Power	60W	120W	240W	360W	500W	650W	800W	1000W	1500W	2000W
AUX Sensitivity	0DB
Frequency Response	80HZ-20KHZ+/-1DB
Protection Circuit	DC, overload, AC fuse, short-circuit
THD	</=0.1%
SNR	>/=80dB
Line output	0dB
Operating temperature	-5℃-80℃
Operating humidity	20%-80% relative humidity
Dimensions(mm)	485×400×88
